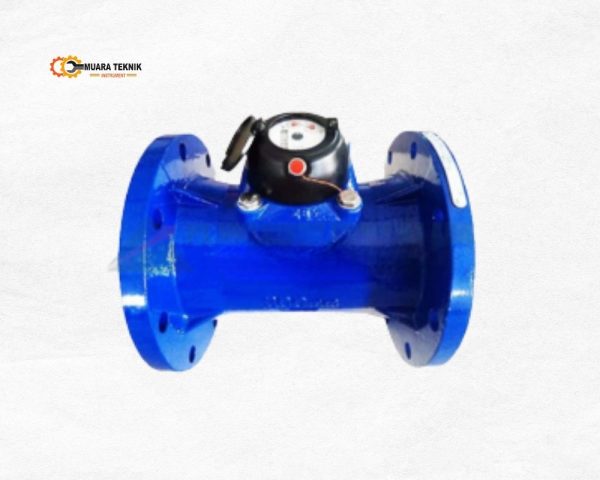

Flow Meter Amico 10 Inch

Flow Meter Amico 10 Inch Spesifikasi:
– Model : Amico LXLG-250E
– Nominal Diameter : 250mm (10 inch)
– Nominal Flow (Qn) : 400 m³/hour
– Overal Length (L) : 450mm
– Metrological class : B
– Maximum Flow (short-term) Qmax : 1200m³/hour
– Maximum Flow (constant) :600 m³/hour
– Transitional Flow (Qt) : 32 m³/hour
– Minimum Flow (Qmin) : 12 m³/hour
– Flow Rate with 0.1 bar head lose : 1000 m³/hour
– Head lost at Qmax : 0.05 bar
– Display range : Min 20 l/ Max 9.999.999m³
– Maximum temperature : 50°C
– Operating pressure, max : 16 bar
– Height (H) : 470 mm
