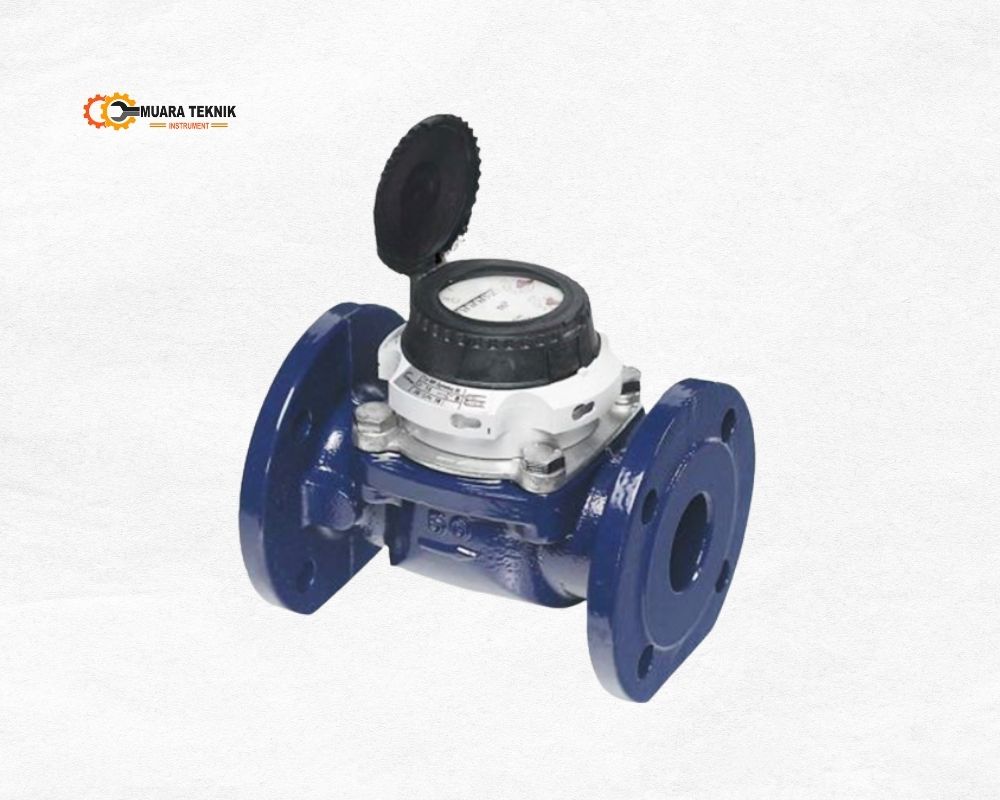

Flow Meter Sensus 8 Inch

Flow Meter Sensus 8 Inch Spesifikasi:
– Meter Size : 8 Inch ( Dn 200 mm )
– Maximum Peak Flow Qmax : 500 m3/h
– Continuous flow (±3%) m3/h QN : 250 m3/h
– Minimum flow (±5%) m3/h : 8 m3/h
– Transitional flow (±3%) m3/h : 20 m3/h
– Temperatur : 130˚C
– Starting Flow : 2.0 m3/h
– Sealed register water proof (IP 67)
– Sealed register may be rotated throught 360 ˚C
– Up to 3 pulser can be fitted without breaking the meter seal.
– Maximum corrosion protection by powder coating not affected by external magnetic fields. interchangeable measuring element.
