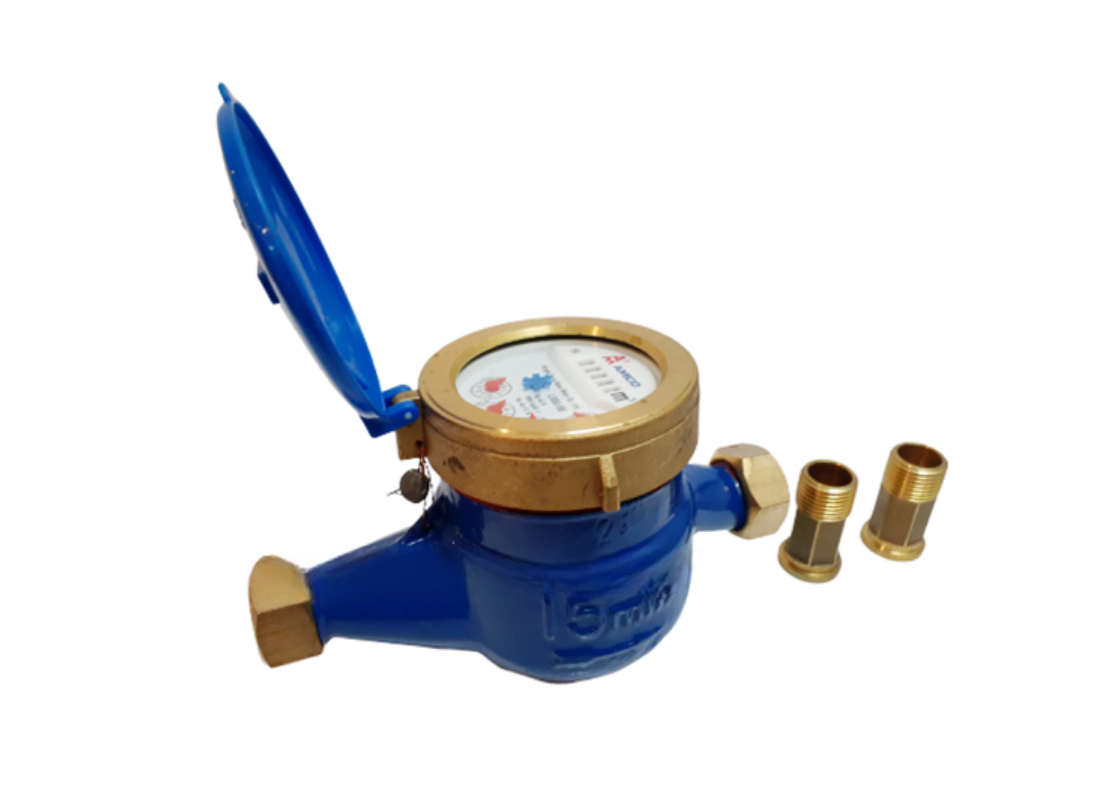

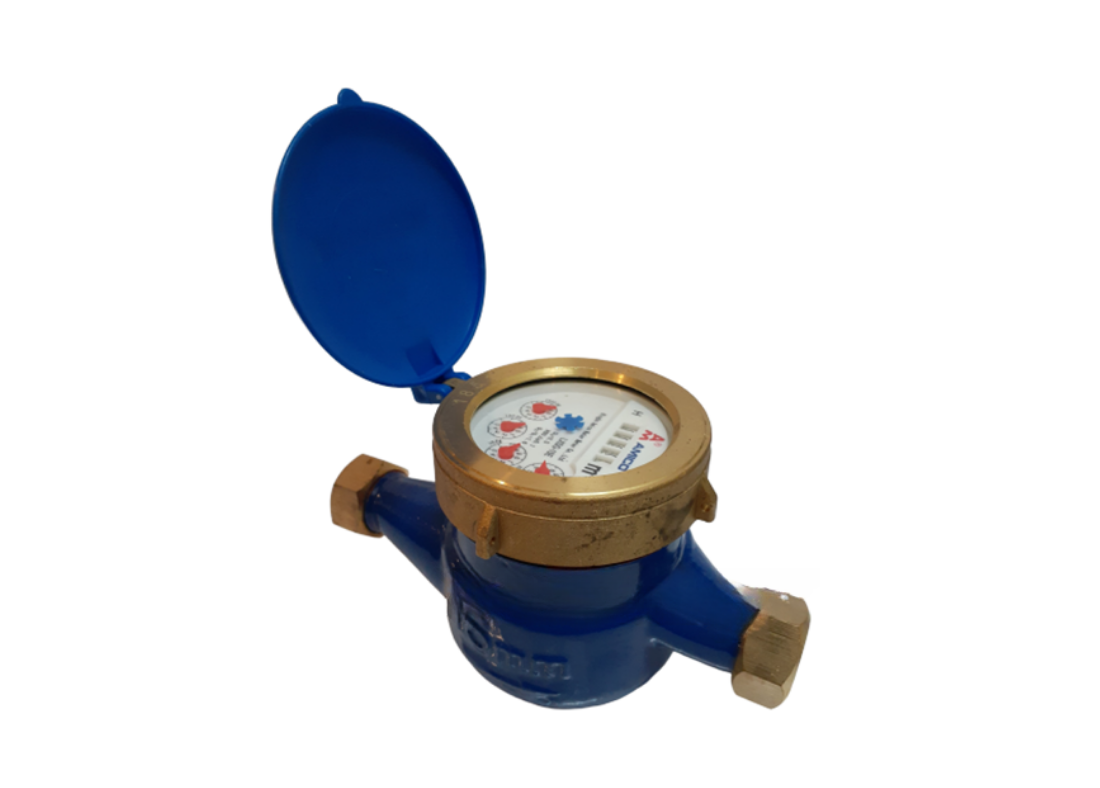

METERAN AIR AMICO 1/2 INCHI (DN15) LXSG-15E

Spesifications METERAN AIR AMICO 1/2 INCHI (DN15) LXSG-15E

– Working Pressure d 1 Mpa Water
– Temperature d 50º C TYPE LXSG-15E-40E
– Max.Flow Rate Qmax ( m³ / h) : 3
– Niminal Flow Rate ( Qn) ( m³ / h) : 1.5
– Minimum Flow Rate ( Qmin) m³ / h : 0.12
– Accuracy Within( Qmax -Qmin) : ± 2% ( Qmax-Qt) ; ± 5% ( Qt-Qmin)
– Working Pressure ( Bars) : 10
– Starting Flow Rate ( m³ / h) : 0.012
– Max Reading ( m³ ) : 99999, 9999
– Min Raeding ( m³ ) : 0, 0001
