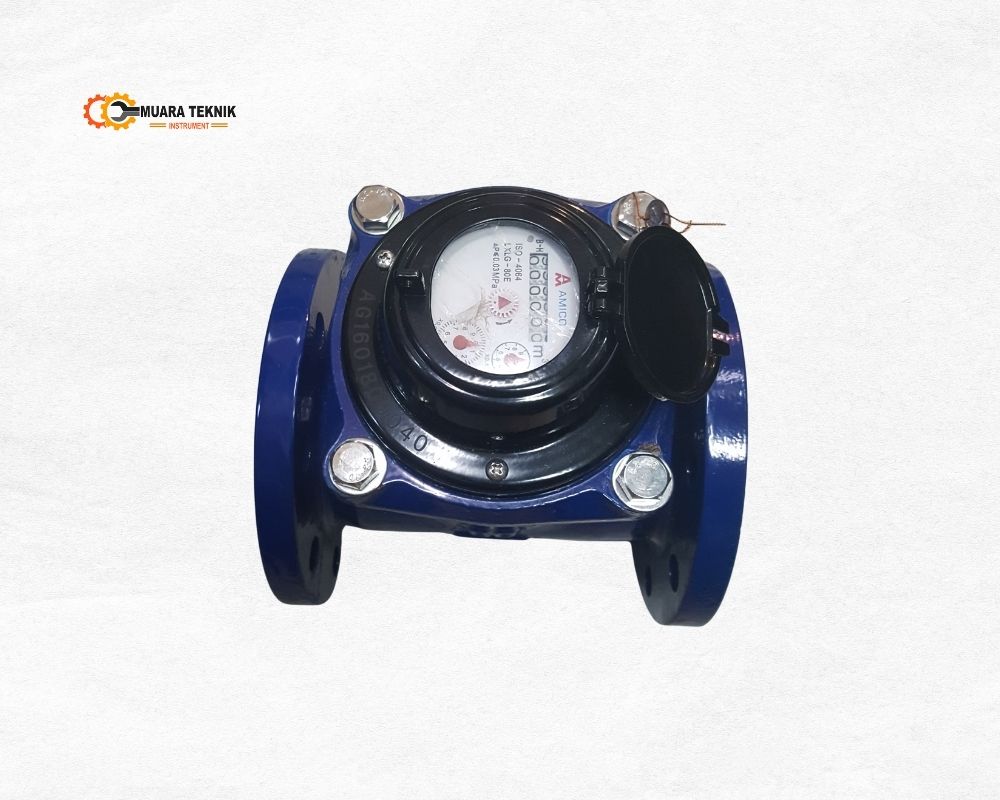

Flow Meter AMICO 6 inch

Flow Meter Amico 6 inch spesifikasi:
– Model : Amico LXLG-150E
– Nominal Diameter : 150 mm (6 inch)
– Nominal Flow (Qn) : 150 m³/hour
– Overal Length (L) : 300 mm
– Metrological class : B
– Maximum Flow (short-term) Qmax : 350 m³/hour
– Maximum Flow (constant) : 250 m³/hour
– Transitional Flow (Qt) : 12 m³/hour
– Minimum Flow (Qmin) : 3.5 m³/hour
– Flow Rate with 0.1 bar head lose : 200 m³/hour
– Head lost at Qmax : 0.2 bar
– Display range : Min 20 l/ Max 9.999.999 m³
– Maximum temperature : 50°C
– Operating pressure, max : 16 bar
– Height (H) : 305 mm
– Flange diameter (D) : 285 mm
